Building a Multilingual Custom Search Page with PnP Modern Search

Part 1 — Information Architecture and Prerequisites

This two-part guide walks through building a custom, controlled search experience in SharePoint Online using PnP Modern Search. The end result is a search page that returns results scoped to specific content types, displays cards styled per content type, and filters using managed metadata taxonomy with labels that switch language based on the user's locale.

What We Are Building

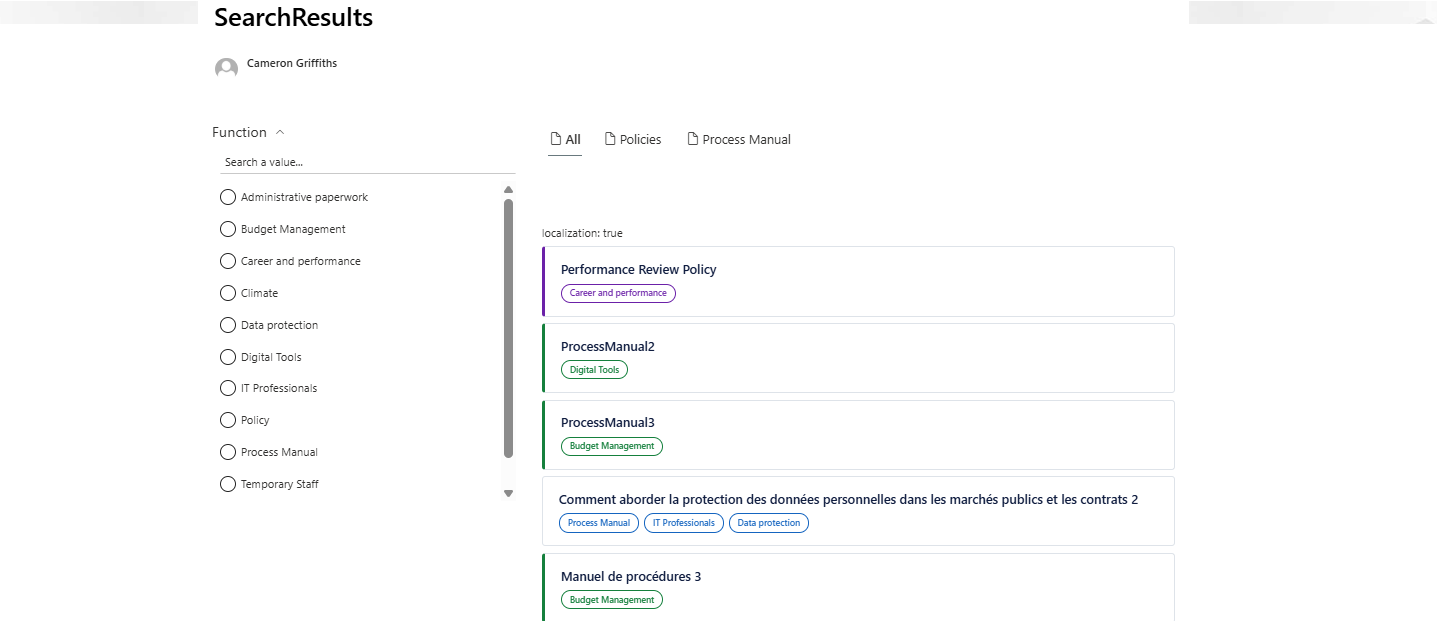

Finished search page showing All vertical with mixed content types, purple/green/base cards, Topic filter panel, and search verticals

Features at a glance:

This first part covers everything you need to have in place before touching a web part. Get this right and the build in Part 2 is straightforward. Skip any of it and you will hit problems that are difficult to diagnose.

Part 1 — Information Architecture and Prerequisites

Step 1

Multilingual Site Setup

Before anything else, confirm that the multilingual pages feature is enabled on your site. This is what allows SharePoint to create and associate translation pages with source pages.

Enable multilingual pages:
Site Settings → Language Settings → Enable pages and news to be translated into multiple languages → add your working languages (e.g. French)

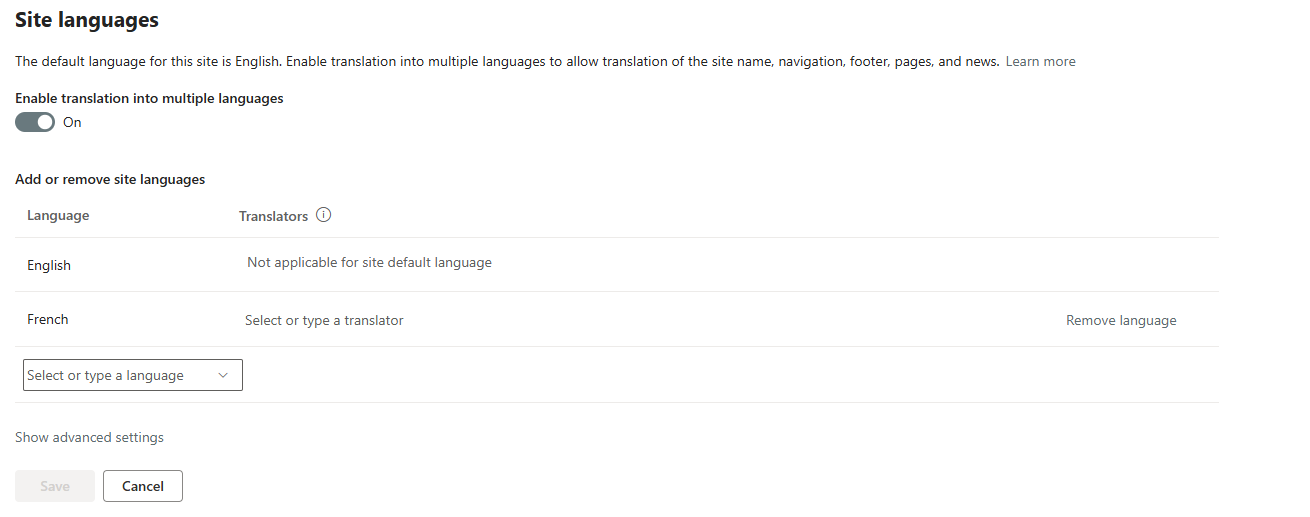

Language Settings page with French added as a working language

Once enabled, a Translations column appears in the Site Pages library, and each page can have associated translation pages created in the working languages.

Note: The multilingual pages feature controls page translation. It does not automatically filter search results by language. Search returns all content regardless of language — this is a known behaviour discussed in the Tips section at the end of Part 2.
Step 2

Term Store Setup and Multilingual Translations

The multilingual filter experience depends entirely on the Term Store having translations configured for each term. Without translations the filter will display term labels in the site's default language regardless of the user's locale.

Verify your Term Store has translations:
SharePoint Admin Center → Content services → Term store → navigate to your term group and term set → click each term → Translations and synonyms tab

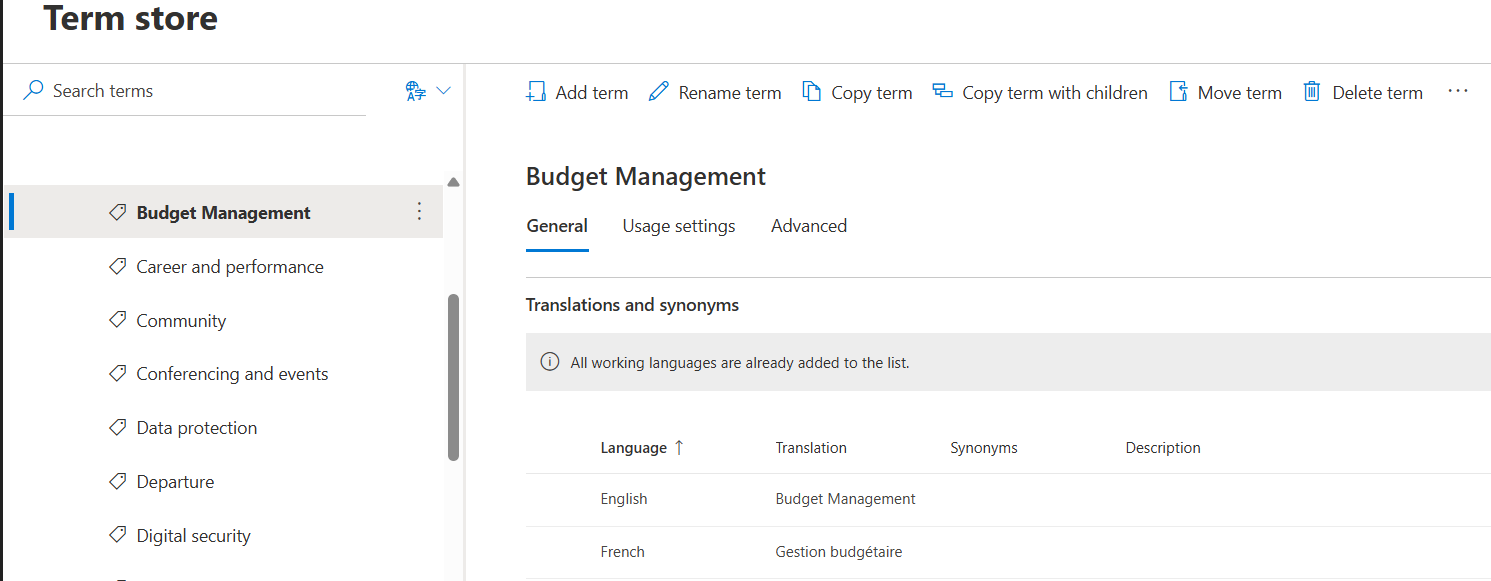

Term Store showing a term with English and French translations side by side

Quick verification using the locale URL parameter:
Append ?Locale=fr-FR to any SharePoint page URL to switch the UI to French for that session. Navigate to a page with a managed metadata column — if the term picker shows French labels your Term Store translations are correctly configured.

Note: If ?Locale=fr-FR doesn't work you can try ?SPLanguage=fr-FR.

If translations are missing, add them in the Term Store before proceeding. Every term you want to appear in French in the search filters needs a French label configured. PnP Modern Search reads these translations directly from the Term Store at render time.

Step 3

Content Types

Define the content types that your search page will return. In this guide we use three:

Content Type Description Card Style
Policy Formal organisational policies Purple left border
ProcessManual Step-by-step process documentation Green left border
SupportingDocumentation Reference and supporting material Base card, no border

Content types should be created at the tenant level and applied to the relevant document libraries or page libraries.

The content type names are used in the KQL query template to scope each search vertical to its content. We use ContentTypeId rather than ContentType name in queries — the ID is stable even if the display name is changed.

Find the ContentTypeId for each content type:
Library Settings → click the content type name → the ID appears in the URL as the ctype= parameter.

Or via PnP PowerShell:

Connect-PnPOnline -Url "https://yourtenant.sharepoint.com/sites/yoursite" -Interactive -ClientId "your-client-id"
Get-PnPContentType | Select-Object Name, Id | Sort-Object Name

Note the full ID for each content type — you will need these in Part 2 when configuring the query templates.

Step 4

Managed Properties: The Critical Step

This is the step most commonly missed and the hardest to diagnose when wrong. Getting it right before building the search page saves significant troubleshooting time.

Why This Step Is Different for Multilingual

For a standard (non-multilingual) search refiner, mapping ows_Function to RefinableString00 at site collection level is sufficient. The refiner displays the term label as a text string.

For multilingual refiners — where the filter labels must switch language based on the user's locale — PnP Modern Search requires the ows_taxId_ variant of the crawled property, mapped at tenant level. This is because the ows_taxId_ property stores the term ID in a format PnP can use to look up the correct translation from the Term Store at render time.

The Managed Properties You Need

Crawled Property Maps To Purpose
ows_Function RefinableString00 Term label in default language — for card display
ows_taxId_Function RefinableString05 Term ID for multilingual refiner
The critical gotcha: ows_taxId_Function must be mapped at the tenant level in SharePoint Admin Center, not at site collection level. Mapping at site collection level alone will not produce multilingual refiner behaviour — the crawled property will exist but the mapping will have no effect on the refiner display.

How to Map at Tenant Level

  1. Go to SharePoint Admin Center → Search → Manage Search Schema
  2. Click Crawled Properties
  3. Search for the crawled property name (e.g. ows_taxId_Function)
  4. If the property appears greyed out with no mapped property shown, it is unmapped — click it to open
  5. Under Mappings to managed properties, click Add a mapping
  6. Search for and select your target RefinableString (e.g. RefinableString05)
  7. Save

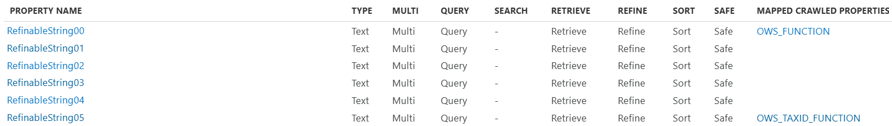

SharePoint Admin Center Search Schema showing ows_taxId_Function mapped to RefinableString05
Note: The exact crawled property name depends on how the site column was created. But taxonomy related columns should be ows_taxid_[column name]. Search in the Admin Center crawled properties to find the exact name in your tenant.

Trigger a Reindex

After mapping, changes do not take effect until content is recrawled. Trigger a reindex:

  • Library-level (fastest for testing): Library Settings → Advanced Settings → Reindex Document Library
  • Site collection level: Site Settings → Search and offline availability → Reindex site

Tenant-level crawls can take several hours. Plan this step ahead of your build session.

Step 5

Create the Custom Search Page

Create a blank SharePoint page that will serve as the custom search results page.

  1. Go to Site Pages → New → Page
  2. Choose a blank layout
  3. Name it something clear — e.g. Search-Results or Recherche for a French site
  4. Publish the page

What You Have at the End of Part 1

Before moving to Part 2 you should have:

With all of this in place, Part 2 covers adding and configuring the PnP Modern Search web parts, building the card templates, and validating the multilingual filter behaviour.

Note: Part 2 coming soon!
